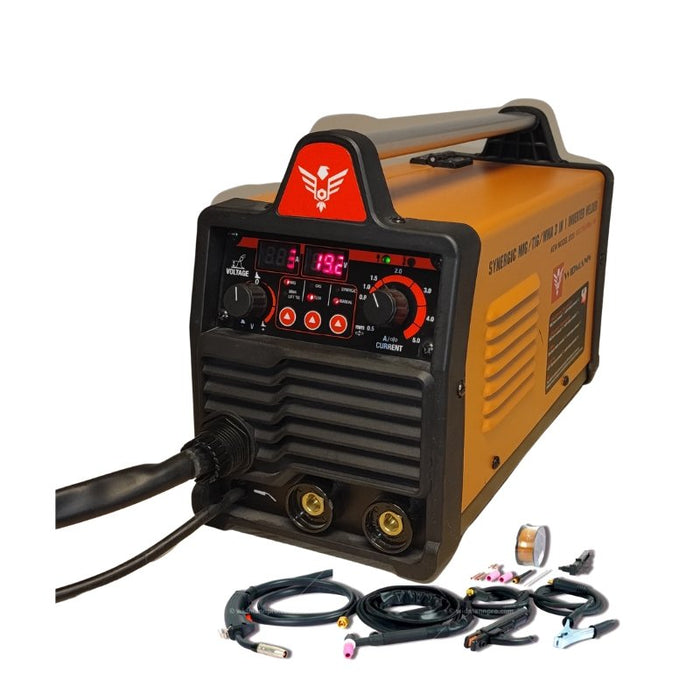

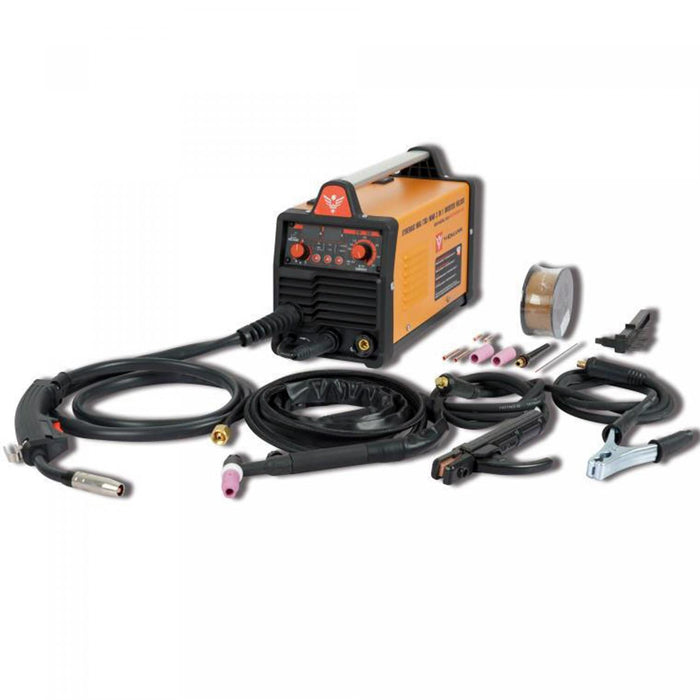

Portable gas/gasless welder with fan cooling with thermal protection, equipped with speed controller. Excellent for home projects and various repairs, perfect for auto shops, farms and small welding shops.

Features

• Portable MIG/MMA/LIFT TIG 3-IN-1 Welder
• IGBT inverter technology
• MIG gas / gasless operation
• Overtemperature / overload / overvoltage protection
• LIFT TIG function
• Suitable for stainless steel wire, aluminum wire, argon wire, flux cored wire, rutile electrode
• Air cooling ventilation
• Wire feed control
• Lightweight
• Provides a forgiving bow, excellent bow action out of position, low spatter and a wide tension range.

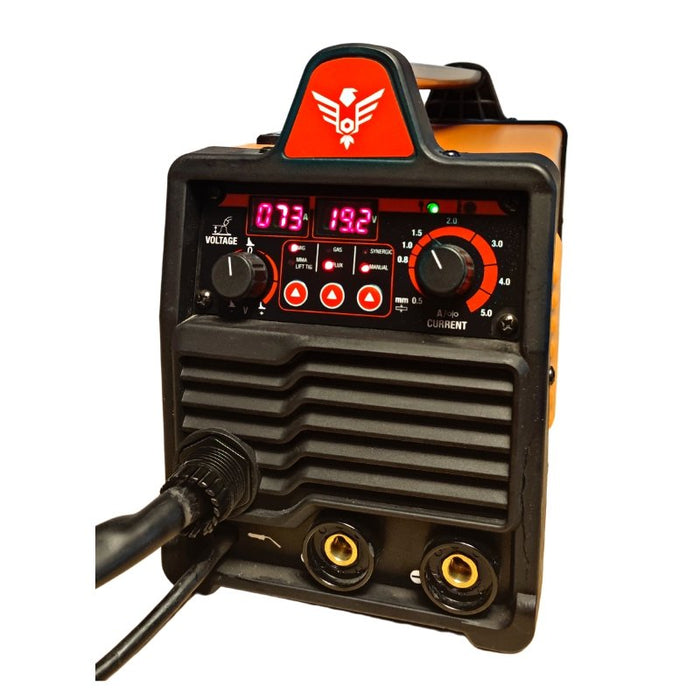

• The display allows presets for greater precision and control.

Specifications

• Brand name: Widmann
• Color: Yellow
• Materials: Steel
• Power supply voltage: 1HP 230V, 50Hz
• Function: MIG, MMA / LIFT TIG Max.
• Input power: 5.4KVA< /span>
• Efficiency: 8 5%
• Power factor: 0.7 Max.
• Open circuit voltage: 65V
• MIG output range: 30A/15.5V-160A/22V
• MMA/LIFT TIG output range: 30A/21.2V160A/26.4V
• MIG rated duty cycle: 35% at 160A, 60% at 120A, 100% at 95A
• Nominal duty cycle MMA / LIFT TIG: 35% at 160 A, 60% at 120 A, 100% at 95 A
• MIG welding wire diameter: 0.61.0 mm
• Usable electrode size MMA/LIFT TIG: 1.6-3.2 mm
• Wire feed speed: 2-15 m/min
• Insulation class: F Housing protection/insulation class: IP21S
